Mastering scale drawings

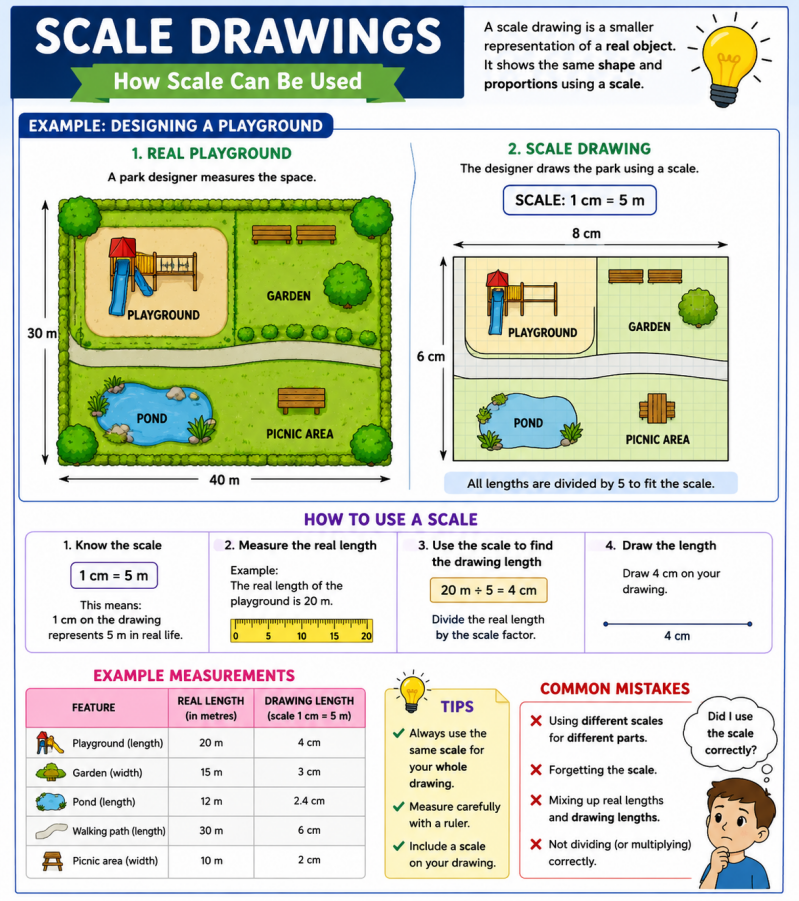

A scale drawing is a smaller or larger version of a real object that keeps the same proportions. Imagine shrinking a huge building onto a piece of paper, or zooming in on a tiny insect. Designers, architects, engineers, and map makers use scale drawings to plan and communicate their ideas accurately. It's like having a miniature model or a giant replica, but all on paper or a screen!

It's easy to get confused between the real-world size and the scaled size. Let's look at how to avoid some common tricky bits:

• Confusing scale with actual measurements: Always remember that the scale tells you how much a drawing has been shrunk or enlarged. For example, if a tree is 20 metres tall in real life, it might be drawn as 4 centimetres on your plan if your scale is 1 cm = 5 m.
• Using the wrong operation: When converting real lengths to scaled lengths, you usually divide! Here's a simple rule: Scaled length = Real length ÷ Scale factor.
• Not understanding what the scale means: The scale is like a mini-dictionary for your drawing. If it says "1 cm = 5 m", it means every 1 centimetre on your drawing represents 5 metres in real life.
• Forgetting to keep everything in the same scale: All objects in your park drawing must use the same scale. Imagine drawing one playground at 1 cm = 1 m and another at 1 cm = 10 m – your park would look very strange! Make sure your scale is consistent.
• Ignoring measurement units: Always double-check your units! If your scale is in metres and your drawing measurements are in centimetres, you'll need to convert one of them so they match up.
